The Difference Between Sine and Square Wave Technology in SmartD Technologies' Clean Power VFD

In today's industrial landscape, the demand for efficient and reliable power solutions is higher than ever. SmartD Technologies has risen to the occasion with their latest innovation, the Clean Power Variable Frequency Drive (VFD). This cutting-edge product is designed to enhance performance, efficiency, and longevity of industrial motors. A key feature of the Clean Power VFD is its use of advanced wave technology. To help our customers understand the benefits of this technology, we're diving into the differences between sine wave and square wave technology.

Understanding Waveforms in VFDs

At the heart of every VFD is its ability to modify the power supplied to an electric motor. This modification is crucial for controlling motor speed and torque, which directly impacts the efficiency and performance of industrial processes. The way a VFD modifies this power is through waveforms, and the type of waveform used can significantly affect the drive's performance.

Sine Wave Technology

What is a Sine Wave?

A sine wave is a smooth, periodic oscillation that represents how alternating current (AC) naturally varies over time. It is characterized by its continuous and smooth curve, which rises and falls in a regular pattern.

Benefits of Sine Wave Technology

1. Smooth Operation: Sine waves produce a smooth and consistent power output, which leads to quieter and more efficient motor operation. This reduces mechanical stress on industrial motors and connected equipment.
2. Reduced Harmonics: Harmonics are distortions in the electrical signal that can cause inefficiencies and damage. Sine wave technology minimizes these distortions, leading to cleaner power and reduced heat generation.
3. Compatibility: Sine wave VFDs are highly compatible with a wide range of industrial motors and equipment, ensuring versatile applications across various industries.
4. Energy Efficiency: By delivering power more efficiently, sine wave VFDs can reduce energy consumption and operational costs.

Square Wave Technology

What is a Square Wave?

A square wave is a type of waveform that alternates between two fixed levels with a sudden transition. Unlike the smooth curve of a sine wave, a square wave looks like a series of sharp, abrupt transitions.

Drawbacks of Square Wave Technology

1. Noise and Vibration: Square wave technology can cause significant electrical noise and mechanical vibration, which can lead to premature wear and tear on motors and other components.
2. Harmonics: Square waves introduce high levels of harmonics into the power system. These harmonics can interfere with other equipment, reduce efficiency, and increase the risk of overheating.
3. Efficiency and Compatibility: Square wave VFDs are less efficient and may not be compatible with all types of motors, limiting their application in diverse industrial settings.

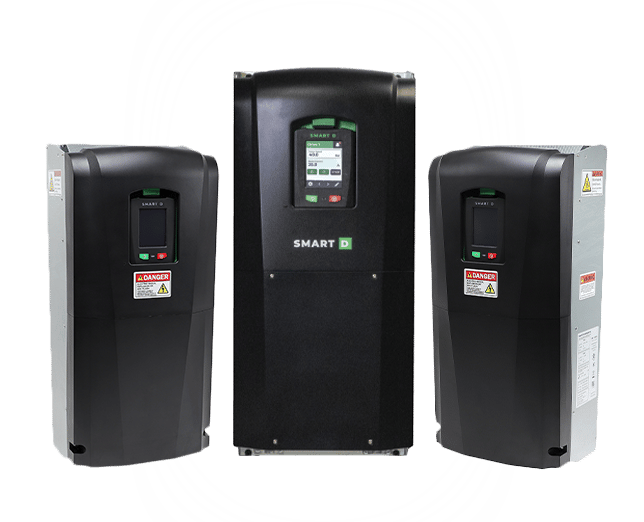

A Drive Without Drawbacks: The Clean Power VFD

SmartD Technologies' Clean Power VFD utilizes advanced sine wave technology to deliver superior performance. By leveraging the smooth, efficient characteristics of sine waves, the Clean Power VFD ensures:

• Enhanced Motor Life: The reduced electrical and mechanical stress extends the lifespan of industrial motors and connected equipment.
• Optimized Efficiency: Lower energy consumption translates to cost savings and a reduced environmental footprint.
• Versatile Application: High compatibility with various industrial motors and systems makes the Clean Power VFD a versatile solution for numerous applications.

Advanced Sine Wave Technology: Silicon Carbide (SiC) Science

The Clean Power VFD delivers a completely clean signal in and out of the drive, but how is it done? It's not magic; it's Silicon Carbide (SiC) science.

The Role of Silicon Carbide

Silicon Carbide (SiC) replaces the traditional silicon IGBT (Insulated Gate Bipolar Transistor) used in conventional drives. SiC MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) are fundamental to enabling the pulse width modulating (PWM) signal that controls the frequency of the electrical output. The major advantage of SiC MOSFETs is their ability to switch much faster than traditional IGBTs, achieving switching speeds up to 100 kHz, which is about 50 times faster than conventional drive switching speeds.

Filtering and Harmonic Management

However, this higher switching speed can generate a significant amount of electromagnetic interference (EMI) and even more dv/dt (rate of voltage change) than traditional drives. To manage these effects, the Clean Power VFD incorporates miniaturized, high-efficiency filters. These filters are critical for:

• Harmonics Reduction: Ensuring the output signal is as close to a pure sine wave as possible.
• EMI Management: Reducing electromagnetic interference that could affect other equipment.
• dv/dt Control: Mitigating the rate of voltage change to prevent stress on motor insulation.
• Common Mode Voltage Reduction: Preventing bearing currents that cause motor damage.

The Secret Sauce

The secret to achieving a clean signal lies in the combination of these technologies:

• Silicon Carbide (SiC): Provides high-speed switching capability.
• Multi-Level Inverter Architecture: Enhances the quality of the output waveform.
• Advanced Harmonic-Cancelling Algorithms: Ensures minimal harmonic distortion.
• Integrated Embedded Filters: Efficiently manage EMI, dv/dt, and common mode voltage.

These elements, combined with fast processors that can control the higher switching frequency, ensure that the Clean Power VFD delivers a clean signal that is friendly to your motor, compatible with long cables, and prevents overheating.

Conclusion

The choice between sine wave and square wave technology can have a significant impact on the performance, efficiency, and longevity of your motor-driven systems. SmartD Technologies' Clean Power VFD, with its advanced sine wave technology, offers a compelling solution for modern industrial needs. The Clean Power VFD's ability to provide a completely clean sine wave output is due to the innovative use of Silicon Carbide technology, advanced multi-level inverter architecture, harmonic-canceling algorithms, and highly efficient integrated filters. This combination results in a VFD that is both powerful and reliable, ensuring optimal performance and longevity of motor-driven systems.
